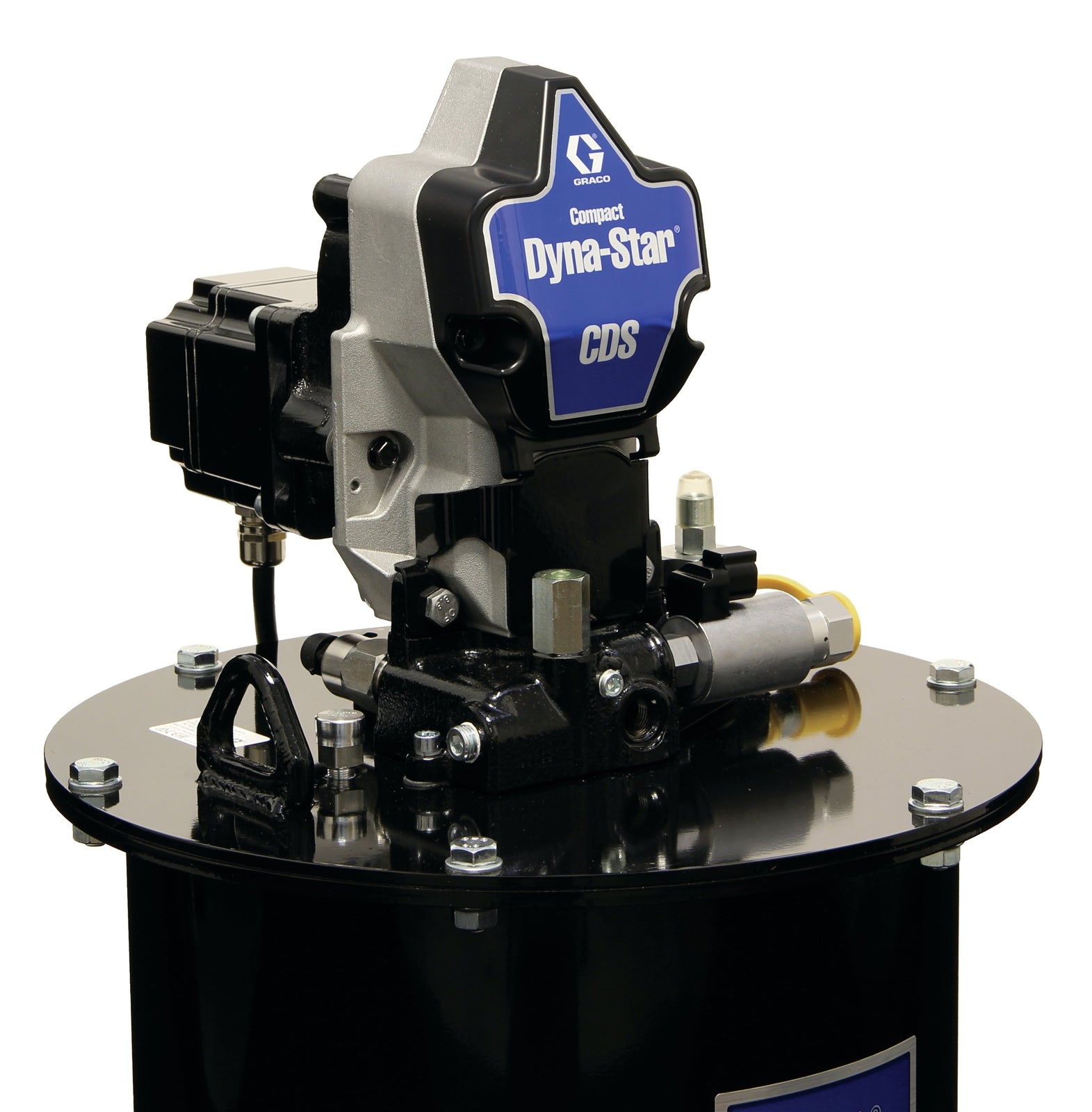

The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.
Currency
AED
AFN
AMD
ANG
AUD
AWG
AZN
BAM
BBD
BDT
BIF
BND
BOB
BSD
BWP
BZD
CAD
CDF
CHF
CRC
CVE
CZK
DJF
DKK
DOP
EGP
ETB
EUR
FJD
FKP
GBP
GMD
GNF
GTQ
GYD
HKD
HNL
HUF
IDR
ILS
ISK
JMD
JPY
KES
KGS
KHR
KMF
KRW
KYD
KZT
LAK
LBP
LKR
MAD
MDL
MKD
MMK
MNT
MOP
MUR
MVR
MWK
MYR
NGN
NIO
NPR
NZD
PEN
PGK
PHP
PKR
PLN
PYG
QAR
RON
RSD
RWF
SAR
SBD
SEK
SGD
SHP
SLL
STD
THB
TJS
TOP
TTD
TWD
TZS
UAH
UGX
USD
UYU
UZS
VND
VUV
WST
XAF
XCD
XOF
XPF
YER
Description
x- Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval.
- Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C.
- Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.
- Integrated Auto-Fill Shut-Off - Option enables single-person, powered-down, ground-level refills, without the need to climb or worry about spills.
UPC Product: 769946179347
Family Code: FAMHPM
Unit of Measure: EA
Height:
45.72 CM
| 18 IN
Length:
44.25 IN
| 112.395 CM
Width:
20.5 IN
| 52.07 CM
Volume:
9.449 FT3
| .268 M3
Chargeable Weight:
105 LBS
| 47.63 KG
Technical Specifications
| Type | Compact Electric Piston Pump |
|---|---|
| Application | In-Plant Machinery, Off-Road Equipment |
| Compatible Material | Grease |
| Fluid Outlet Size (in) | 3/8, 1/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Input Voltage (V dc) | 24 |
| Maximum Continuous Cycle Rate (CPM) | 64 |
| Maximum Cycle Rate (CPM) | 64 |
| Maximum Flow Rate (L/min) | 0.074 |
| Maximum Fluid Output Pressure (psi) | 3500 |
| Maximum Intermittent Cycle Rate (CPM) | 64 |
| Maximum NLGI Grade | 2 |
| Maximum Operating Temperature (°C) | 149 |
| Maximum Operating Temperature (°F) | 65 |
| Maximum Working Pressure (bar) | 241 |
| Maximum Working Pressure (kPa) | 24100 |
| Maximum Working Pressure (psi) | 3500 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Motor Type | Brushless DC |
| Power Rating (HP) | 0.25 |
| Power Type | Electric |
| Reservoir Material | Steel |
| Reservoir Size (L) | 30 |
| Reservoir Size (lb) | 60 |
| Seal Material | Buna-N |
| Sound Pressure Level (dB(A)) | 70 |
| Throat Seal Type | Hythane 181, Hythane 181, Hythane 181, Hythane 181, Hythan 181 |
| Weight (lb) | 83 |
| Wetted Material | Steel, Buna-N, Acetal, Lubrithane, Polyurethane, Brass, Polyethylene |
| Compatible Metering Device | Single Line Parallel |
| Component Technology | Brushless Electric Motor;Shovel-loading pump tube |
| IP Rating | IP69K |
| Low Level Switch Rating (VDC) | 24 |
| Low Level Switching Current (A) | 0.2 |
| Maximum cST Grade (cST) | NLGI #2 |
| Maximum Cycle Rate (strokes/min) | 64 |
| Maximum Fill Inlet Pressure (psi) | 500 |
| Maximum Flow Rate (ci/min) | 4.5 |
| Maximum Voltage (V dc) | 30 |
| Minimum Voltage (V dc) | 18 |
| Number of Pump Elements | 1 |
| Overall Depth (cm) | 39.62 |
| Overall Depth (in) | 15.6 |
| Overall Depth (mm) | 396.2 |
| Overall Height (cm) | 72.14 |
| Overall Height (in) | 28.4 |
| Overall Height (mm) | 721.4 |
| Overall Width (cm) | 38.1 |
| Overall Width (in) | 15 |
| Overall Width (mm) | 381 |
| Power Connection Type | Deutsch DT04-12PB Housing |
| Vent Valve Maximum Operating Current (A) | 1 |
| Vent Valve Maximum Operating Power (W) | 25 |
| Vent Valve Output Voltage (VDC) | 24 |
| Voltage (V) | 24 |
| Weight (kg) | 37.6 |
| Number of Outlets | 2 |
| Maximum Working Pressure (MPa) | 24.1 |
| Voltage | 24 |
| Approvals | CE;EAC;RCM |
| Output Per Cycle (cm³) | 1 |
| Lower Type | Integrated Shovel Loading |
| Pressure Reporting Maximum Signal (VDC) | 5 |
| Pressure Reporting Minimum Signal (VDC) | 1 |
| Pressure Reporting Transducer Full Range (psi) | 5000 |
| maximum_fluid_output_pressure_bar | 241 |
