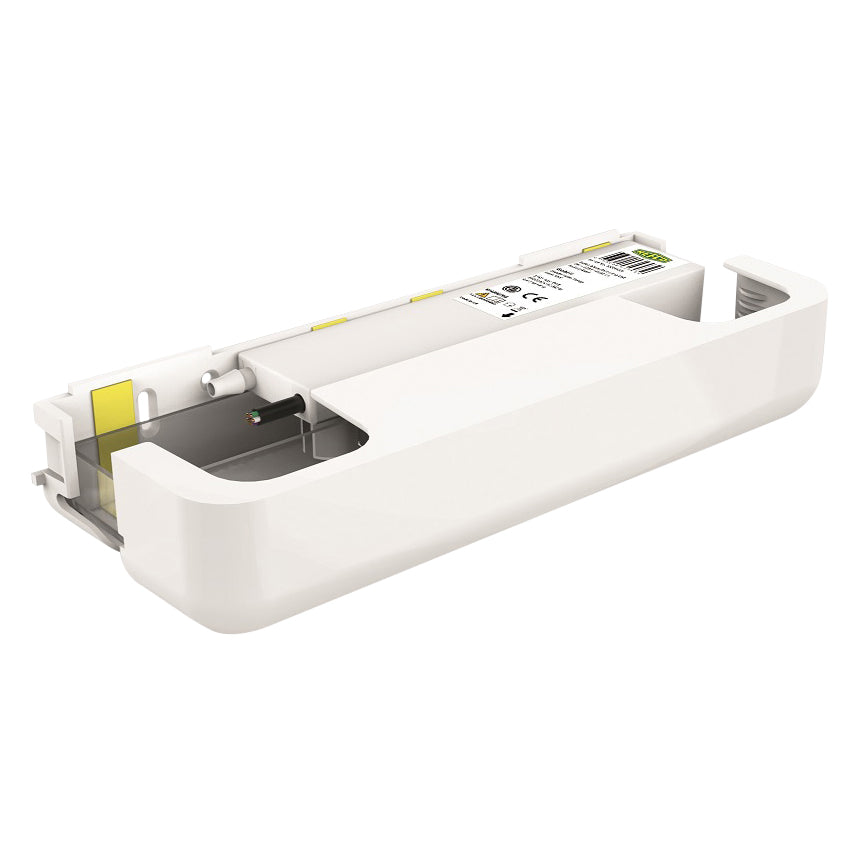

Refco 3004145 - Gobi II 11 GPH Condensate Pump, 120/240V

Refco GOBI II - 3004145 Condensate Pump

The GOBI II condensate pump for direct mounting under the air conditioner is designed for systems from 6 000 BTU/h (1.75kW) up to 120 000 BTU/h (35kW). The digital water sensor, the universal voltage range and the individually configurable flow rate are features that contribute to making the Gobi II the most powerful and quietest condensate pump for air conditioning systems on the market today. The variable range of applications allows the trade as well as the installer to cover almost all needs with just one pump.

Features

• Universal use due to wide range of applications
• Warranty period only starts with commissioning (readable via USB)
• 11 gallon pumping capacity per hour
• 65 ft delivery head
• <19 dB noise level
• No float problems thanks to digital sensor
• Demand-oriented control of the pumping capacity
• Spare parts available

Technical Data

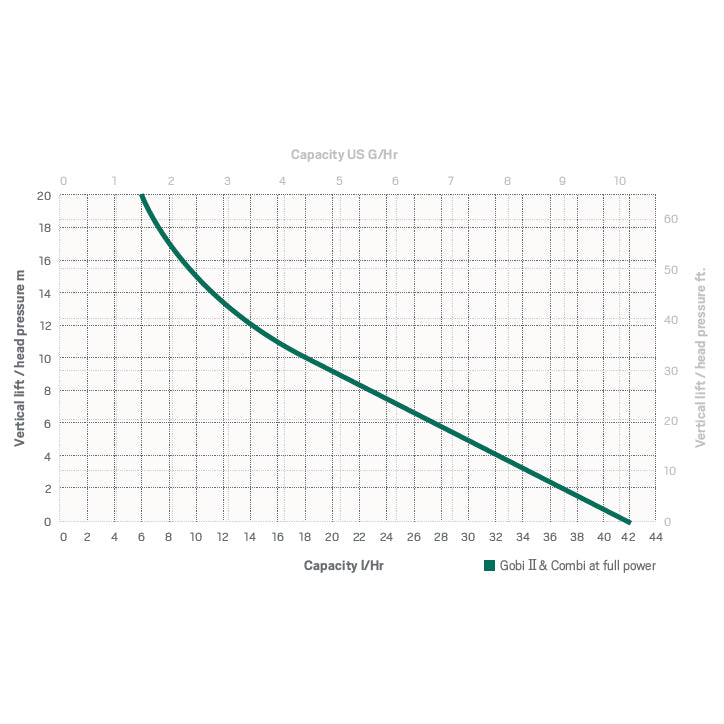

• Max. Flow Capacity: 11 GPH
• Max. Delivery Head: 65.6 ft
• Max. Suction Head: 10 ft
• Noise Level: 19 dB(A)
• Type: Diaphragm type
• Tube Diameter: 1/4 ″
• Voltage: 100 - 240 VAC
• Frequency: 50 / 60 Hz
• Energy Consumption: 12 kW
• Protection Class: I
• Alarm Relay: Interchangeable NO or NC, rated 250VAC, 6.3A or 28VDC, 6.3A
• Ingression Protection: IP44
• Cable Length: 5 ft
• Operating Temperature Range: 37.5 - 104 °F
• Water Temperature Range: 41 - 77 °F
• Storage Temperature Range: -4 - 122 °F

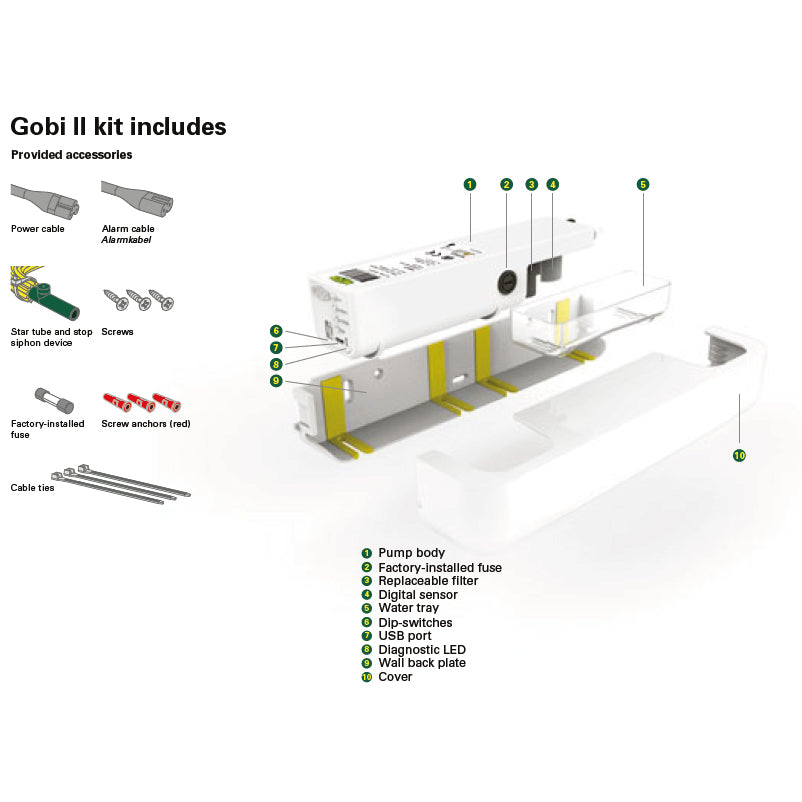

• Includes: Power cable, Alarm cable, Star tube and anti-siphon device, Screws (for mounting), Screw anchors, Factory-installed alarm fuse, Cable ties, Instruction manual
• Color: signal white (RAL 9003)
• Standards: EN 60335-1, EN 60335-2-41, UL778 CSA C22.2 #68
• RoHS Conformity: Yes
